A vital consideration in all buildings, is Smoke Safety. Buildings come in many shapes and sizes, and must be both designed and equipped to give occupants time to escape in the event of a fire. Whether you prefer electrical, pneumatic or mechanical control systems, we can help you be prepared with straightforward and effective Smoke Management Solutions for flat roofs.
Smoke and Heat Extraction Skylight Domes SOLIDOME
Documentation for download
SOLIDM 2 Skin
U-value: 1,49 W/m2K Transparent – 79 % Opal – 61 %
SOLIDM 3 Skin
U-value: 1,4 W/m2K Transparent – 71 % Opal – 54 %
SOLICOM
U-value: 0,89 W/m2K Transparent – 33 % Opal – 29 %
SOLICOM PC16
U-value: 0,99 W/m2K Transparent – 62% Opal – 54%
SOLIPC
U-value: 0,94 W/m2K Transparent – 48 % Opal – 35 %
SOLIDARK
U-value: 0,94 W/m2K Light transmission: Blind (0%)
SOLIROCK
U-value: 0,7 W/m2K Light transmission: Blind (0%)

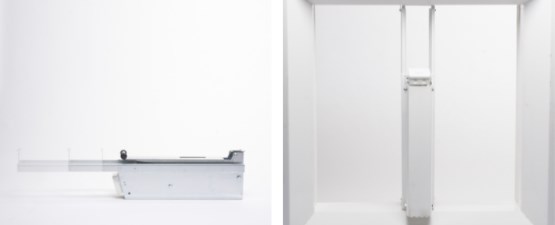

Electric smoke and heat extraction drive
According to the European standard EN 12101-2, where heat and smoke extraction systems are required, 24V / 48V electric sunroof openings can be used together with SOLIDOME skylights. The principle of opening the smoke extraction mechanisms is that the drive housing is attached to the base of the sunroof and the traverse to the flap. The drive piston, which is inserted into the crossbar, opens or closes the flap by moving to one side or the other. The size of the mounting hole depends on the size of the drive housing and the power of the motor.
Electric drives are supplied with 24V or 48V DC, depending on the number of smoke extraction skylights, often combined into one group together with other drives into a common circuit and connected to the control panel. An opening / closing switch is installed where provided in the fire safety part of the project. According to the applicable requirements, the skylight is considered to be fully open in the smoke extraction position when the opening angle reaches 140 °.
Electric drives are supplied with 24V or 48V DC, depending on the number of smoke extraction skylights, often combined into one group together with other drives into a common circuit and connected to the control panel. An opening / closing switch is installed where provided in the fire safety part of the project. According to the applicable requirements, the skylight is considered to be fully open in the smoke extraction position when the opening angle reaches 140 °.
Pneumatic smoke and heat extraction drive
SOLIDOME skylights can be fitted with pneumatic smoke extraction drives. The system is tested and complies with the European standard EN 12101-2. Pneumatic actuators are installed in the skylight in the same way as electric drives - the body is attached to the base and the traverse to the flap.
Opening after start-up - when a fire starts in a building, when the room temperature rises to a certain temperature, the thermal capsule in the actuator explodes and pierces the CO2 cylinder, which fills the system with gas and the piston opens the flap. The explosion temperature of the thermal capsules can optionally be 68 ° C, 90 ° C or 110 ° C.
Opening after start-up - when a fire starts in a building, when the room temperature rises to a certain temperature, the thermal capsule in the actuator explodes and pierces the CO2 cylinder, which fills the system with gas and the piston opens the flap. The explosion temperature of the thermal capsules can optionally be 68 ° C, 90 ° C or 110 ° C.
Brochure "Solidome Solutions"
Smoke and heat extraction skylight domes SOLIDOME Installation Instruction
SOLIDOME skylights users manual
SOLIDOME Product storage_EN
SOLIDOME Product storage_EE
SOLIDOME Product storage_SWE
Skylight Dome SOLIDM 2 Skin NSHEV (natural lighting skylignt, smoke and heat extraction system) DWG
Skylight Dome SOLIDM 3 Skin NSHEV (natural lighting skylignt, smoke and heat extraction system) DWG
Skylight Dome SOLICOM NSHEV (natural lighting skylignt, smoke and heat extraction system) DWG
Skylight Dome SOLIPC NSHEV (natural lighting skylignt, smoke and heat extraction system) DWG
Skylight Dome SOLICOM PC16 NSHEV (natural lighting skylight, smoke and heat extraction system) DWG
Skylight Dome SOLIROCK NSHEV (natural lighting skylight, smoke and heat extraction system) DWG
| Base bottom size, cm | Opening top size, cm | Frame external size, cm | Area, m2 | SOLIDM 2Skin | SOLIDM 3Skin | SOLICOM | SOLIPC |
|---|---|---|---|---|---|---|---|
 |  |  | |  |
|||
| 80/80 | 62/62 | 81/81 | 0.38 | 7.2 | 8.5 | 9.3 | 8.9 |
| 80/100 | 62/82 | 81/101 | 0.51 | 9 | 10.7 | 11.7 | 11.1 |
| 80/120 | 62/102 | 81/121 | 0.63 | 10.8 | 12.8 | 14 | 13.4 |
| 80/150 | 62/132 | 81/151 | 0.82 | 13.5 | 16 | 17.5 | 16.7 |
| 90/90 | 72/72 | 91/91 | 0.52 | 9.1 | 10.8 | 11.8 | 11.3 |
| 100/100 | 82/82 | 101/101 | 0.67 | 11.3 | 13.3 | 14.6 | 13.9 |
| 100/120 | 82/102 | 101/121 | 0.84 | 13.5 | 16 | 17.5 | 16.7 |
| 100/140 | 82/122 | 101/141 | 1 | 15.8 | 18.7 | 20.4 | 19.5 |
| 100/150 | 82/132 | 101/151 | 1.08 | 16.9 | 20 | 21.9 | 20.9 |
| 100/170 | 82/152 | 101/171 | 1.25 | 19.2 | 22.7 | 24.8 | 23.6 |
| 100/200 | 82/182 | 101/201 | 1.49 | 22.5 | 26.7 | 29.2 | 27.8 |
| 100/220 | 82/202 | 101/221 | 1.66 | - | - | - | 30.6 |
| 120/120 | 102/102 | 121/121 | 1.04 | 16.2 | 19.2 | 21 | 20 |
| 120/140 | 102/122 | 121/141 | 1.24 | 18.9 | 22.4 | 24.5 | 23.4 |
| 120/150 | 102/132 | 121/151 | 1.35 | 20.3 | 24 | 26.2 | 25 |
| 120/170 | 102/152 | 121/171 | 1.55 | 23 | 27.2 | 29.7 | 28.4 |
| 120/200 | 102/182 | 121/201 | 1.86 | 27 | 32 | 35 | 33.4 |
| 120/220 | 102/202 | 121/221 | 2.06 | - | - | - | 36.7 |
| 140/140 | 122/122 | 141/141 | 1.49 | 22.1 | 26.1 | 28.6 | 27.3 |
| 140/170 | 122/152 | 141/171 | 1.85 | 26.8 | 31.7 | 34.7 | 33.1 |
| 140/200 | 122/182 | 141/201 | 2.22 | 31.5 | 37.3 | 40.8 | 38.9 |
| 140/220 | 122/202 | 141/221 | 2.46 | - | - | - | 42.8 |
| 150/150 | 132/132 | 151/151 | 1.74 | 25.4 | 30 | 32.8 | 31.3 |
| 150/170 | 132/152 | 151/171 | 2.01 | 28.7 | 34 | 37.2 | 35.5 |
| 150/200 | 132/182 | 151/201 | 2.4 | 33.8 | 40 | 43.7 | 41.7 |
| 150/220 | 132/202 | 151/221 | 2.67 | - | - | - | 45.9 |
| 170/170 | 152/152 | 171/171 | 2.31 | - | - | - | 40.2 |
| 170/200 | 152/182 | 171/201 | 2.77 | - | - | - | 47.3 |
| 170/220 | 152/202 | 171/221 | 3.07 | - | - | - | 52 |
| 180/180 | 162/162 | 181/181 | 2.62 | - | - | - | 45.1 |
| 180/200 | 162/182 | 181/201 | 2.95 | - | - | - | 50.1 |
- Skylight domes product warranty guarantee 60 months
- Pneumatic and electrical actuators for Smoke and Heat Exhaust Ventilation product warranty guarantee 24 months
